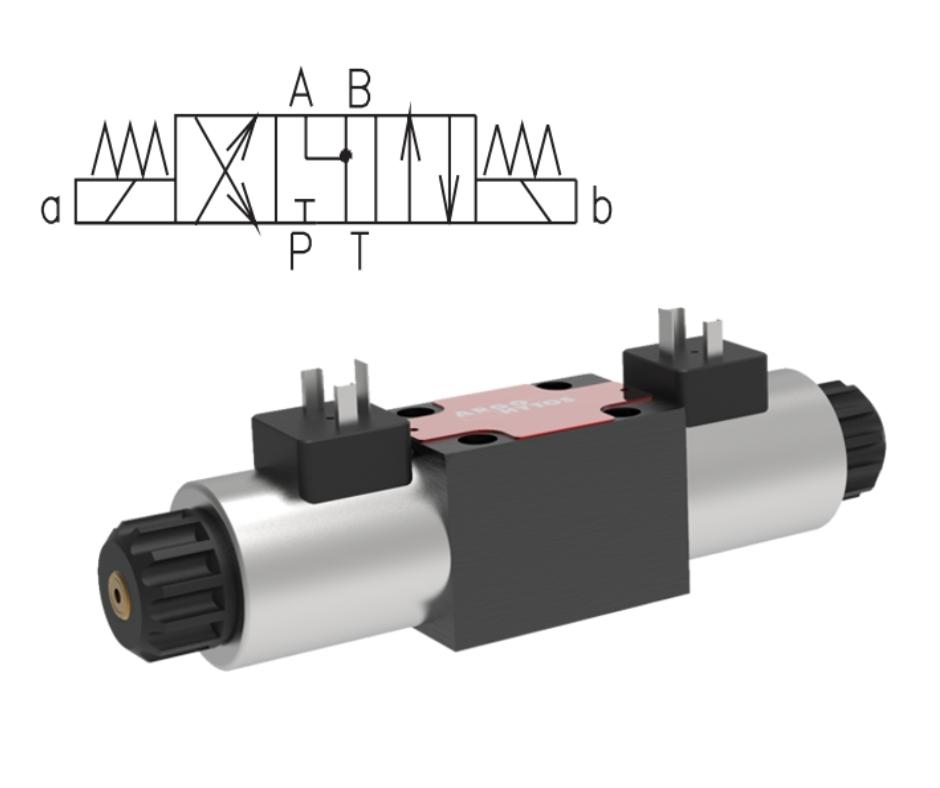

› High transmitted hydraulic power up to 350 bar with optimized design to minimize pressure drop

› Five chamber housing design with reduced hydraulic power dependence on fluid viscosity

› The valve is available with interchangeable DC solenoids, also for AC power supply using a built-in rectifier bridge

› Wide range of solenoid electrical terminal versions available

› Wide range of interchangeable spools and manual overrides available

› CSA Certificate upon request

› Inductive contactless Normally Open and Normally Closed spool position sensor option

› Soft-shift spool speed control option

› The coil is fastened to the core tube with a retaining nut and can be rotated by 360° to suit the available space

› In the standard version, the valve housing is phosphated for basic surface corrosion protection and as preparation for painting. Steel parts are zinc-coated for 240 h salt spray protection acc. to ISO 9227

› Enhanced surface protection for mobile sector available for the valve housing and steel parts (ISO 9227, 520 h salt spray
